6 Inch Dual Row LED Light Bar XDD225F-G4
XD GEN4 6" Dual Row LED Light Bar (XDD225F-G4)
XD GEN4 6" Dual Row LED Light Bar (XDD225F-G4)
XD-GEN4 Series 6 inch dual row LED light bar

XD GEN4 6" Dual Row LED Light Bar (XDD225F-G4)

Regular price$80.00
/
Tax included. Shipping calculated at checkout.

This product has now been discontinued and is no longer available for sale. We have kept this page active for the benefit of those who have purchased this product in the past.

The legend continues.

The LED light bars that took Australia by storm are now brighter and more efficient than ever.

Hardkorr dual row LED light bars have always been the favourite of professional drivers and people who drive on roads inhabited by kangaroos and other wildlife. Our dual-chip hybrid technology, first introduced in our GEN3 series bars in 2016, produces a light beam that is unparalleled in width and evenness. The output of these light bars fills your entire field of view with light, ensuring that you can spot hazards that are not just located in front of the vehicle, but off to the sides of the road as well.

The XD-GEN4 series is the latest update to this range and represents another leap forward in LED technology. We have upgraded our GEN3 series to utilise the very latest OSRAM and CREE LED chips, and our engineers have tweaked the circuitry and reflector geometry to suit.

The result is an even wider and longer beam, with no black spots or hot spots.

They’re also CISPR15 compliant, meaning they have been independently tested to ensure they do not interfere with radio frequencies.

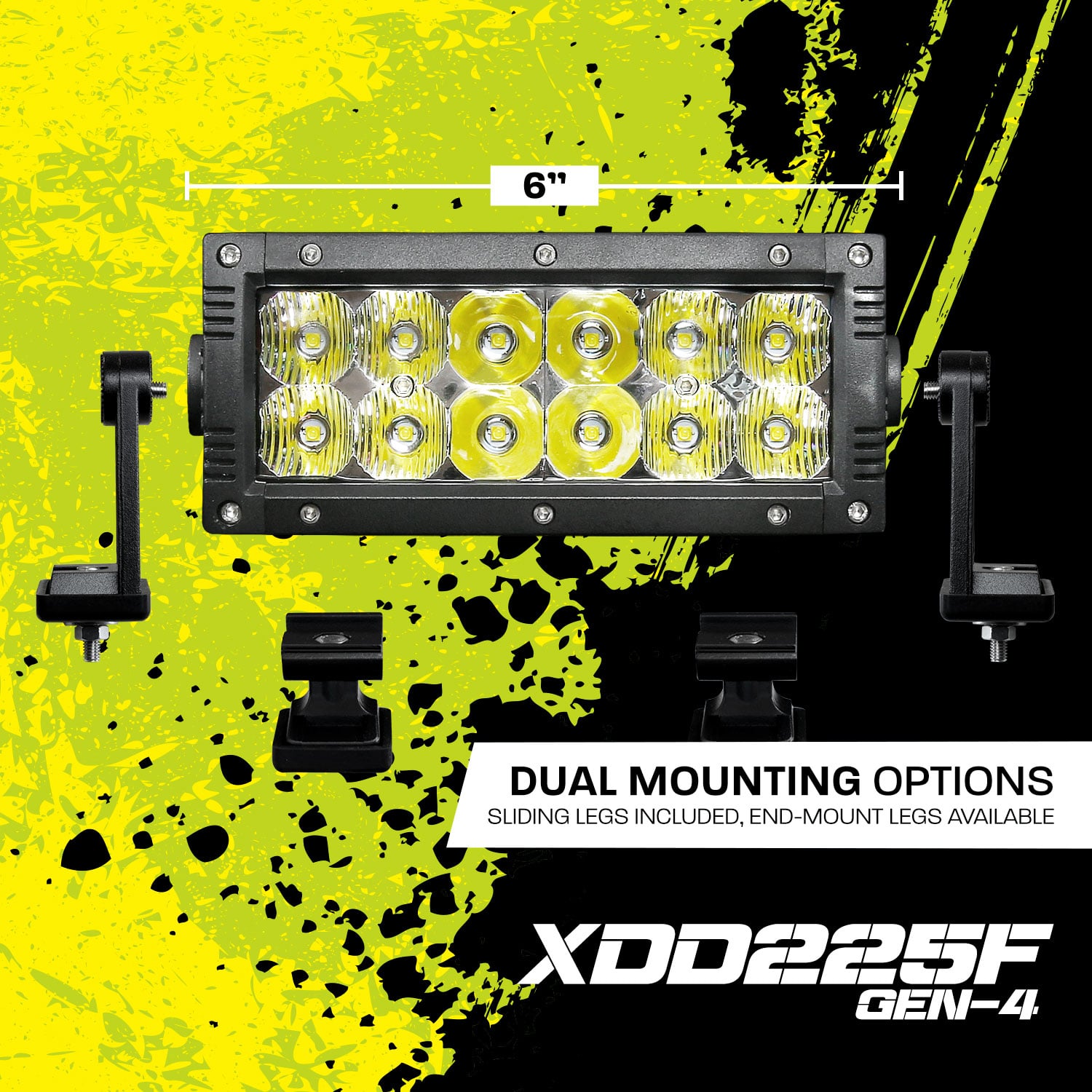

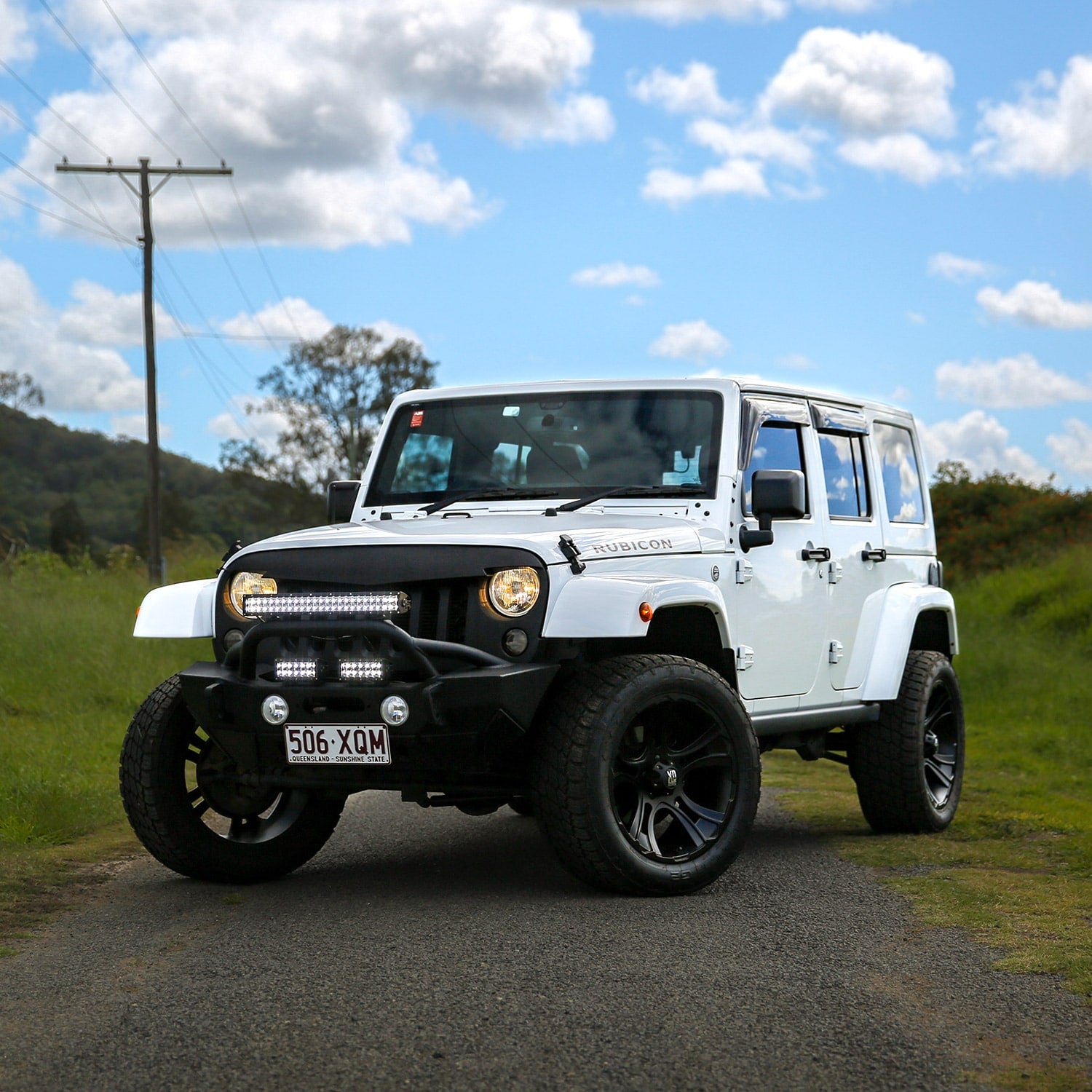

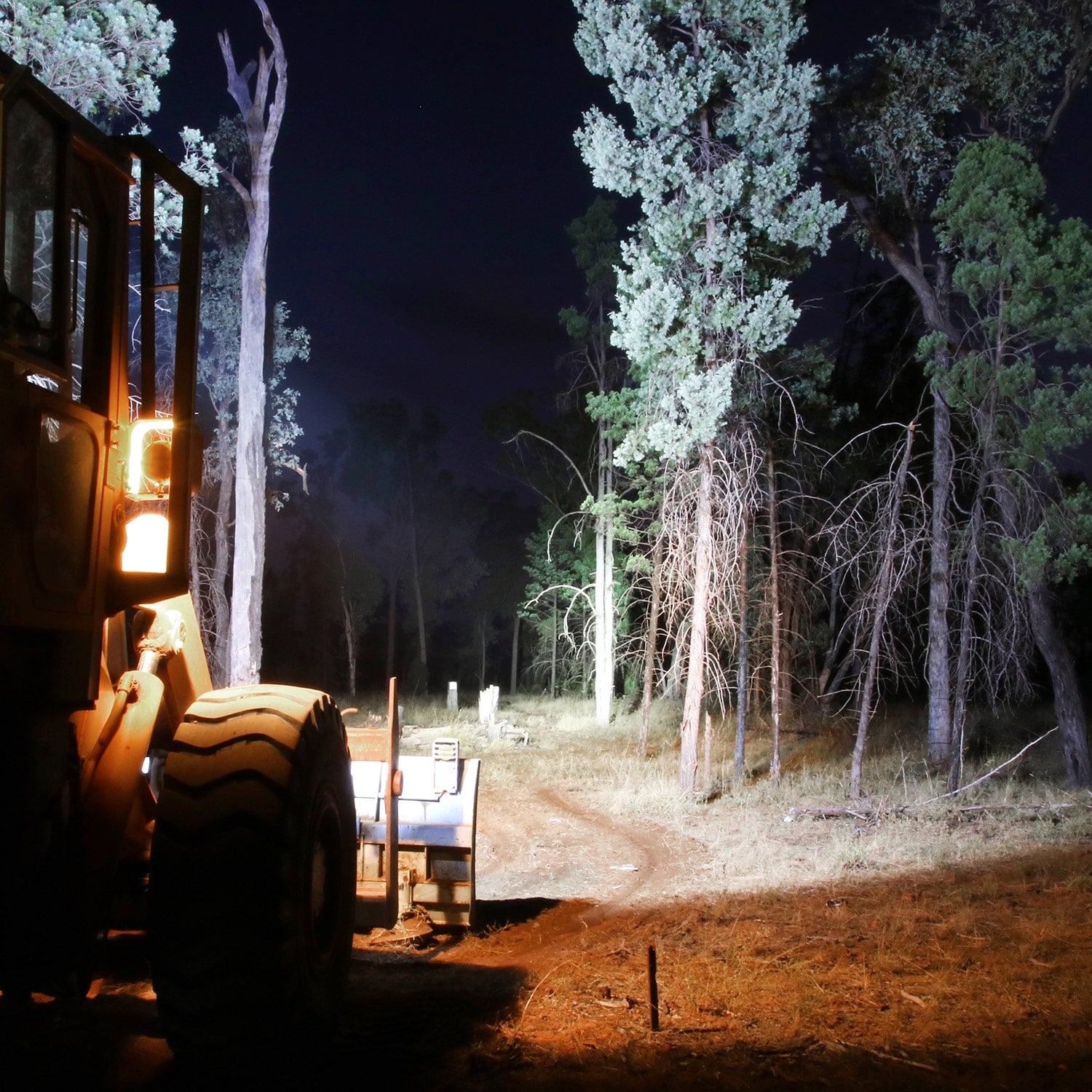

The 6″ XDD225F-G4 has been set up specifically as a flood light, unlike the rest of the GEN4 range. Its compact size makes it perfect for a range of applications including machinery. On 4×4’s it can easily fit either side of a winch, and can be used to complement a set of spotlights by providing additional flood coverage.

Powerful, extra-wide flood beam.

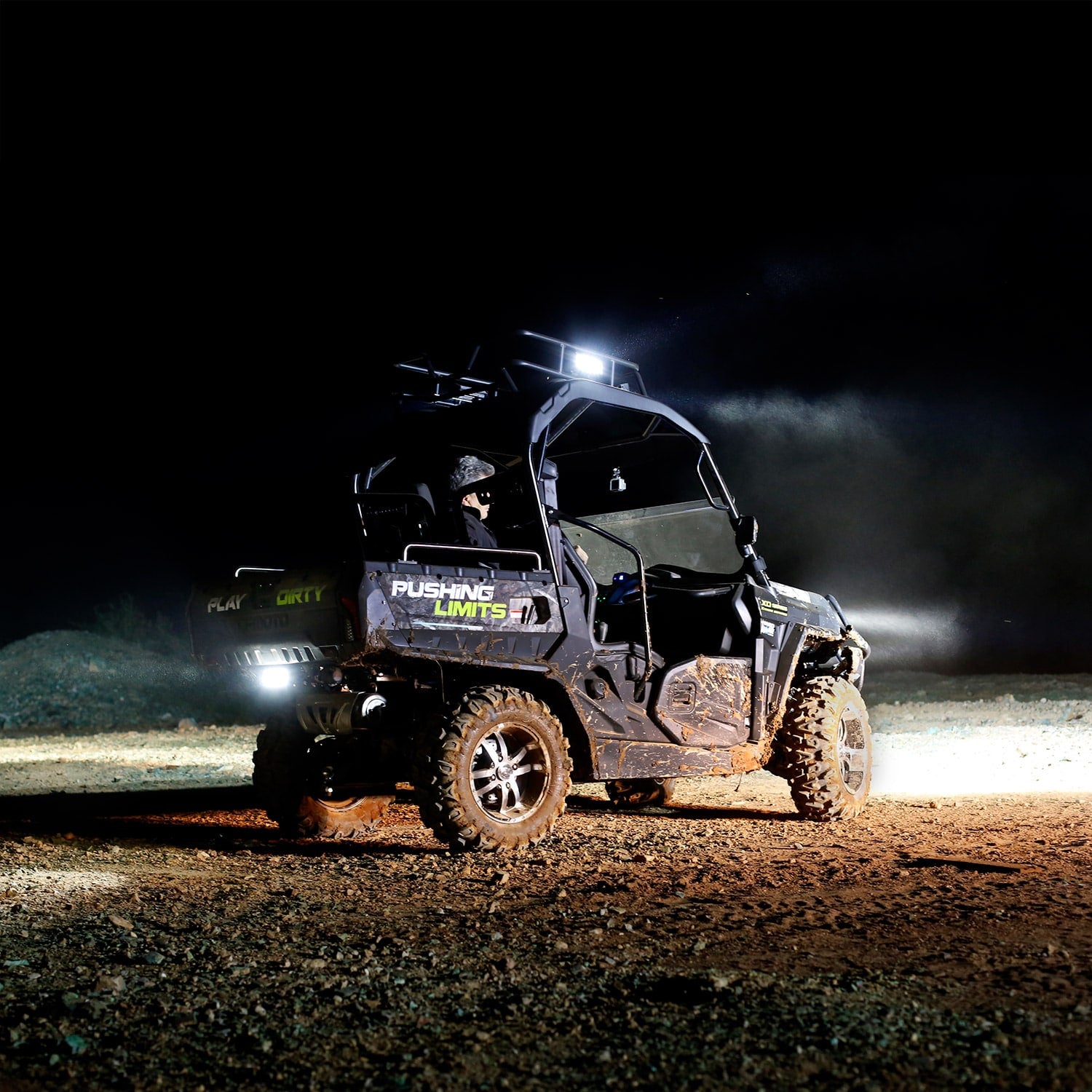

Our XD-GEN4 6 inch LED light bar produces a strong, even beam which stretches far off to each side of the light. They are particularly handy for off-road applications or used in conjunction with a set of LED spot lights.

Genuine parts, precision optics.

Hardkorr’s GEN4 series light bars are made using genuine top-grade OSRAM® and CREE® LED chips sourced from authorised agents, to ensure even light throw, correct colour rendering and long service life. These chips are matched with custom engineered reflectors that are manufactured to nanometre precision, and secured within high-quality aluminium housing which is designed to effectively dissipate heat and protect the sensitive components within.

This attention to detail ensures that every unit we manufacture gives consistent performance, and helps us fulfil our ambition to be the world’s most trusted manufacturer of LED lighting.

Materials 6063 aluminium housing Lexan® polycarbonate lens
LED Manufacturer CREE®
LED Number 12 x 5W
Beam type Flood
Beam throw 1 lux @ 225m
Output 5,400 lumens
Ingress Protection IP68
Dimensions 158mm (w) x 95mm (d) x 85mm (h w/sliding legs) / 105mm (h w/end-mount legs)
Weight 1.6kg
Operating Voltage 10 - 30v DC
Current 2.2A @ 13.5V / 1.1A @ 24V
Colour Temp 6000K
LED Lifespan 50,000+ hours
Certifications CE, RoHS, C-Tick, CISPR15
1x 60w dual-row LED light bar
1x set of sliding legs
1x Deutsch plug tail
Hardkorr XDD225F-G4 dimension diagram

All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 5.0-year Australian warranty and a 30-day money back guarantee.
