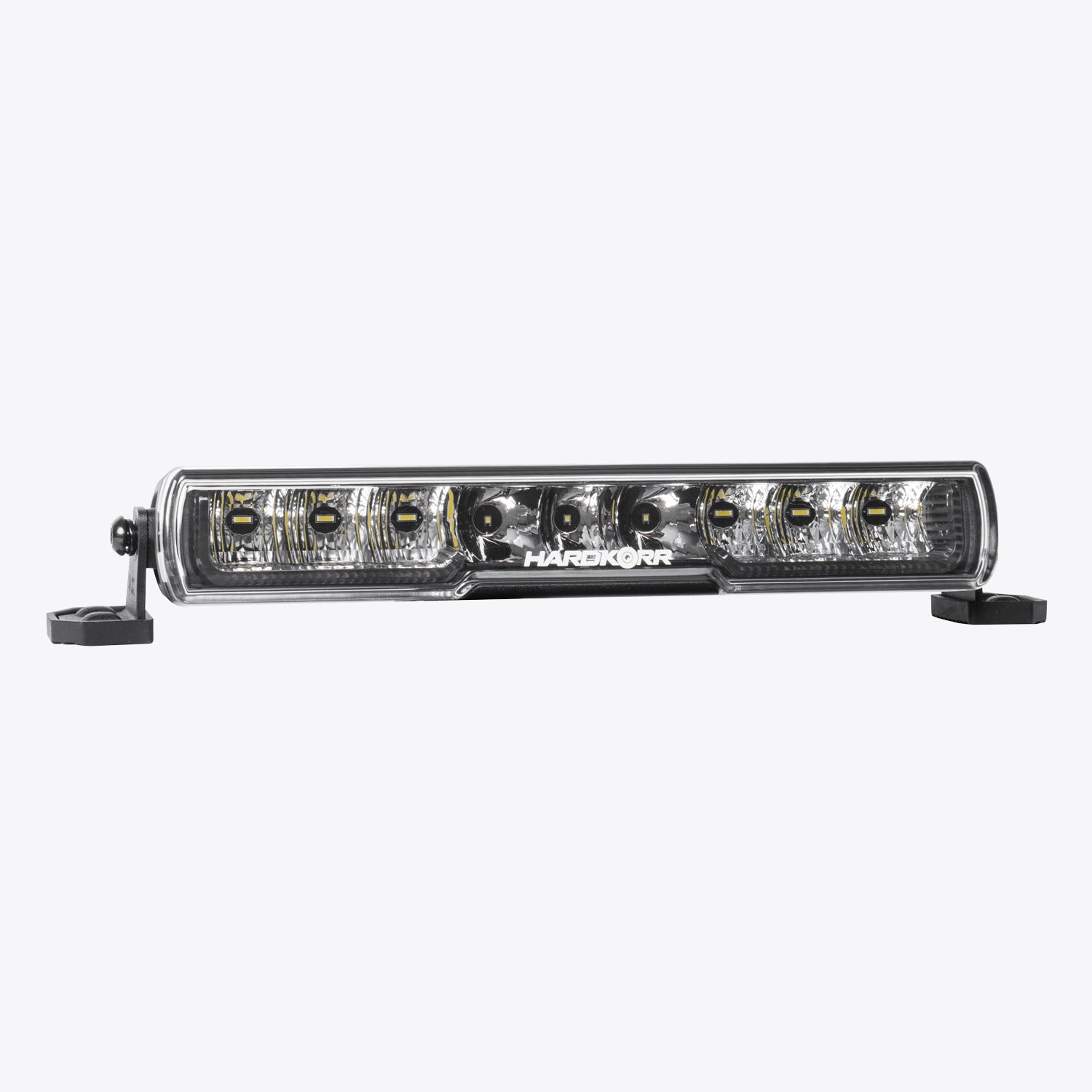

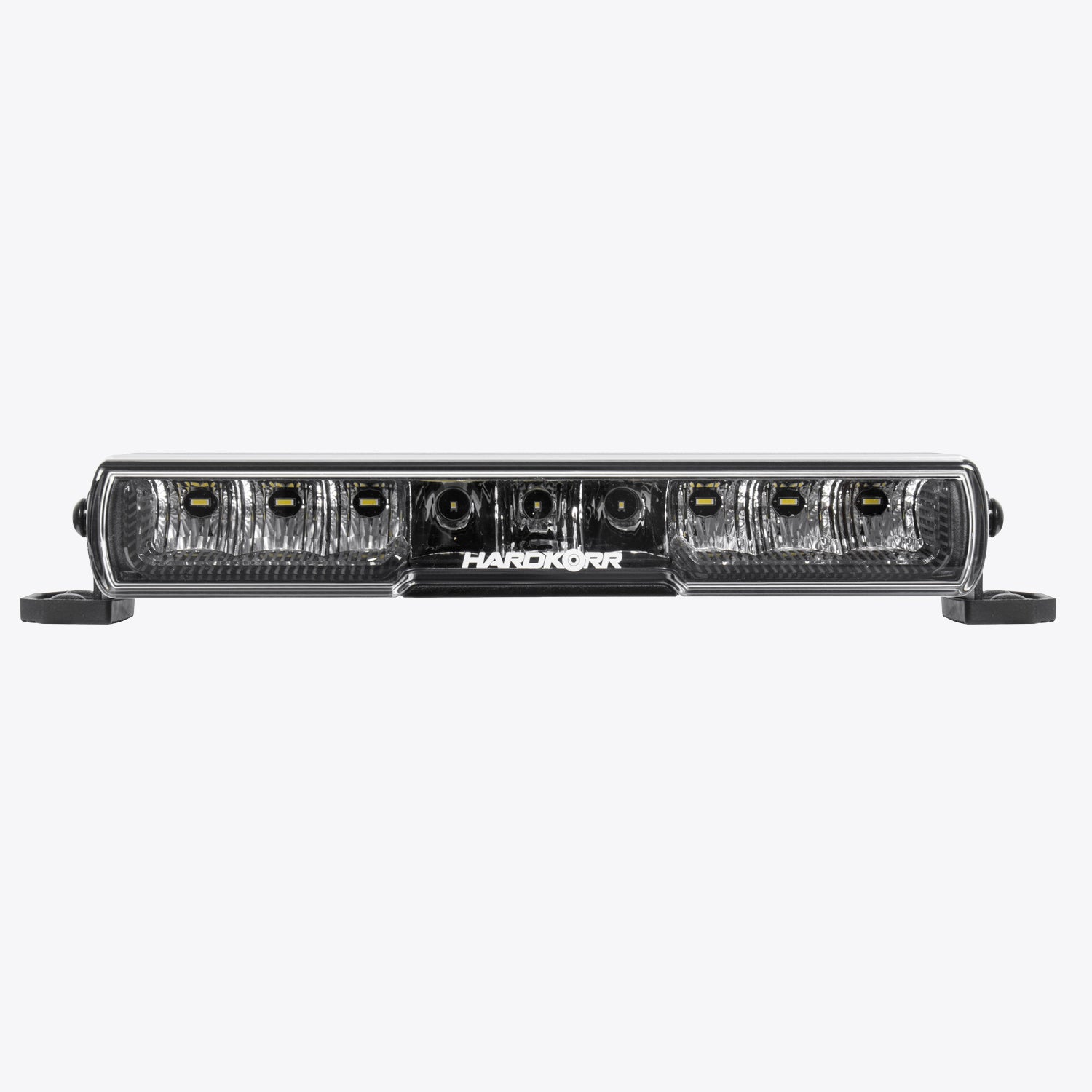

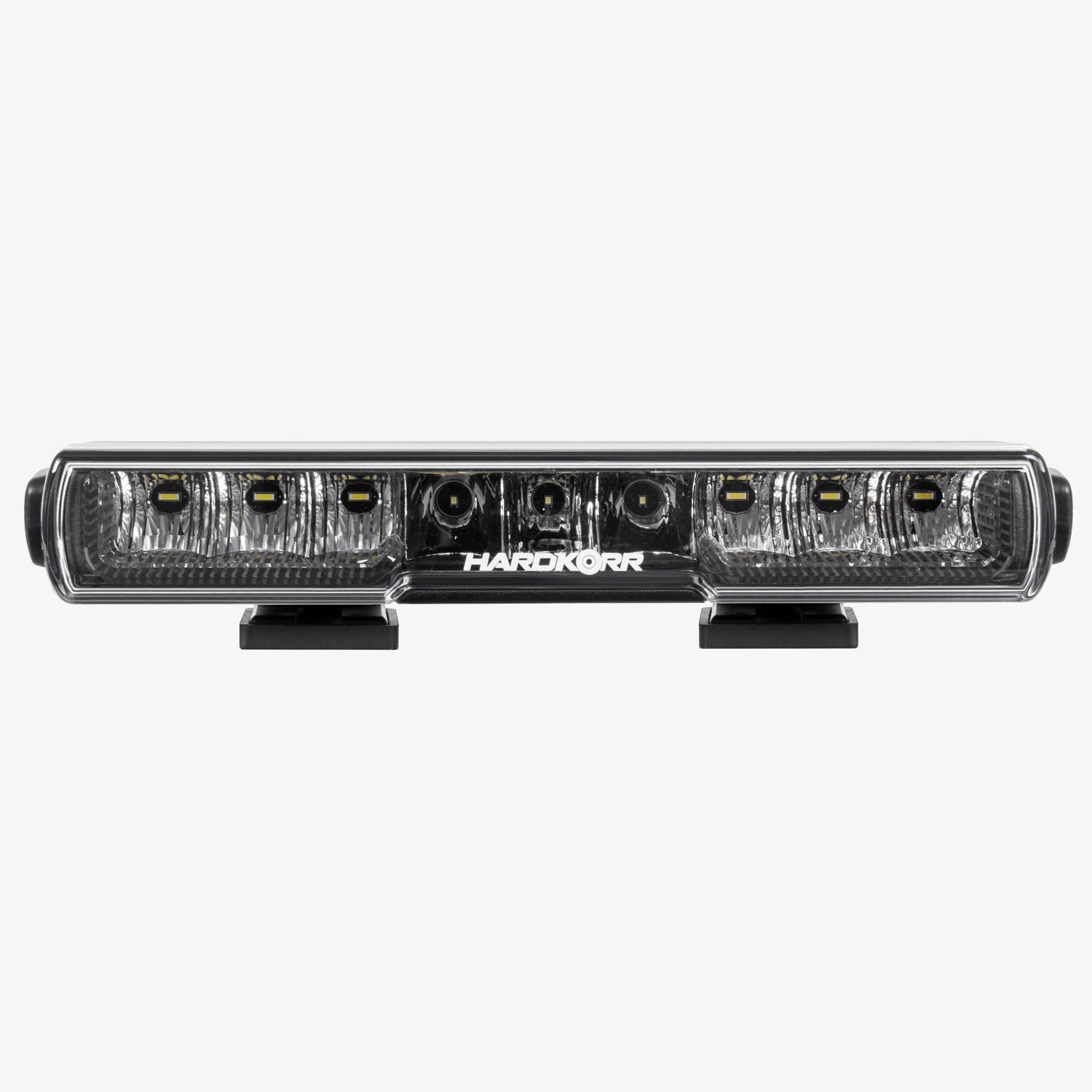

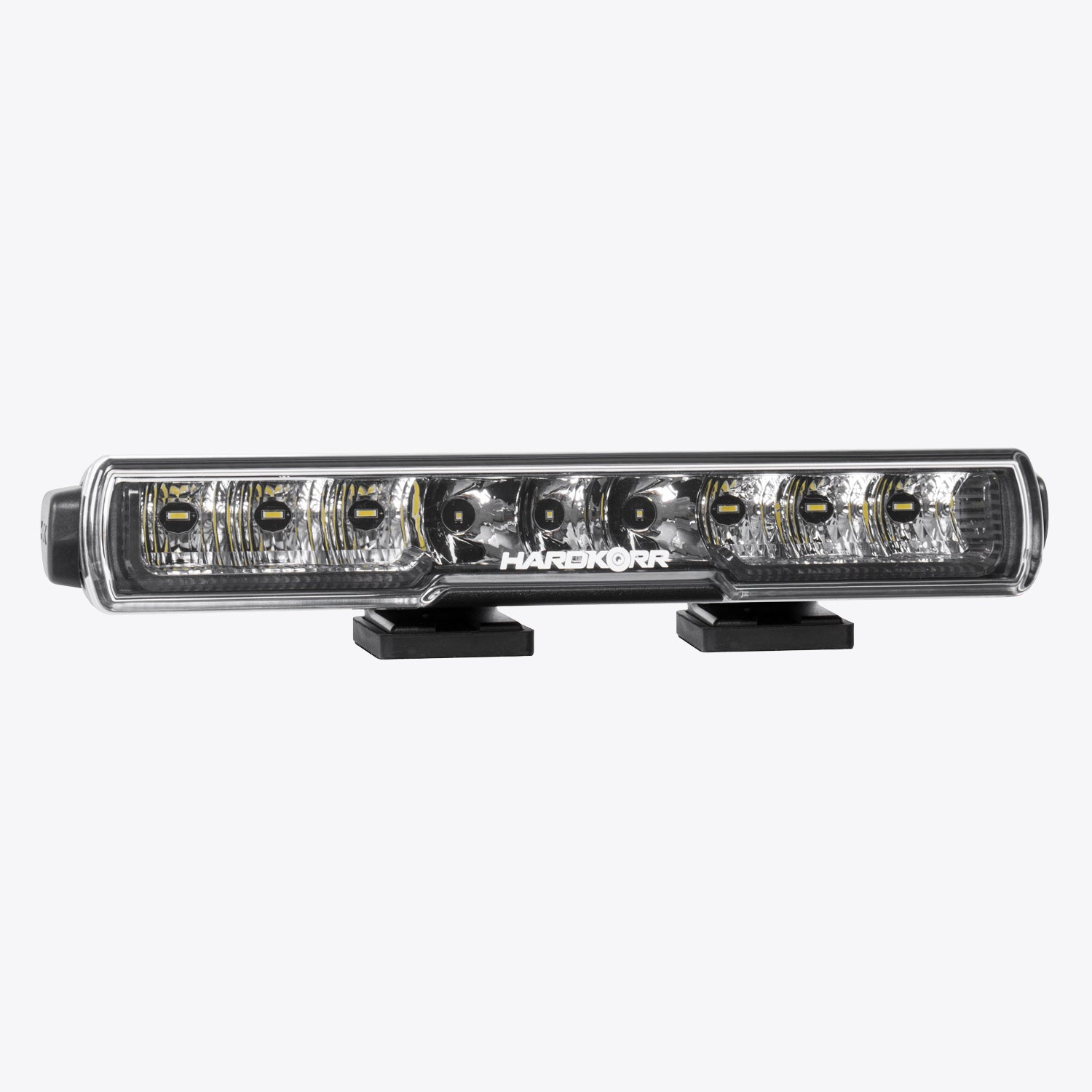

XD Series 10" Single Row LED Light Bar
LBXD-10S
Regular price$123.00Tax included.
Shipping calculated at checkout.
YOU MAY ALSO NEED:
NO SHIPPING AVAILABLE OUTSIDE AUSTRALIA AT THE MOMENT
The XD Series lightbars deliver strong, reliable performance without the premium price tag. Designed to put light where it actually matters, the XD throws a clean, controlled beam with a 52° spread, lighting up the road ahead and the edges at the same time. With a 1 lux reach of 270 metres, distance is never in question when visibility counts.
Running at a crisp 5,500K colour temperature, the light output is clear and natural, reducing glare and eye fatigue on long night drives. Built tough for real conditions, the XD Series is engineered to handle vibration, shock, dust, and water without complaint.
Hazard avoidance. Distance. Durability. All sorted.
There’s really only one question left.
Where to next?
* All images shown are from pre-production models; there may be minor differences between them and the final production models.| Housing material | Powder-coated die-cast aluminium |
| Bracket material | Powder-coated die-cast aluminium |
| Lens material | UV-coated polycarbonate |
| Size | 290 (L) x 46 (H) x 61 (D) mm |
| Weight | 0.84 kg |
| Raw lumens | 10,221 lm |
| Effective lumens | 4,894 lm |
| 1-lux rating | 262 m |
| Beam angle | 52° |
| Peak intensity (candela) | 68,000 cd |
| Colour temperature | 5,500 K |
| LED chips | 3 × 2016 + 6 × 1860 |
| Operating voltage | 10–30 V DC |
| Current draw | 5.87A @ 12V / 2.84A @ 24V |
| DRL draw | 0.51A @ 12V / 0.25A @ 24V |
| Operating temperature | -30°C – 65°C |
| Ingress protection | IP68 / 9K |

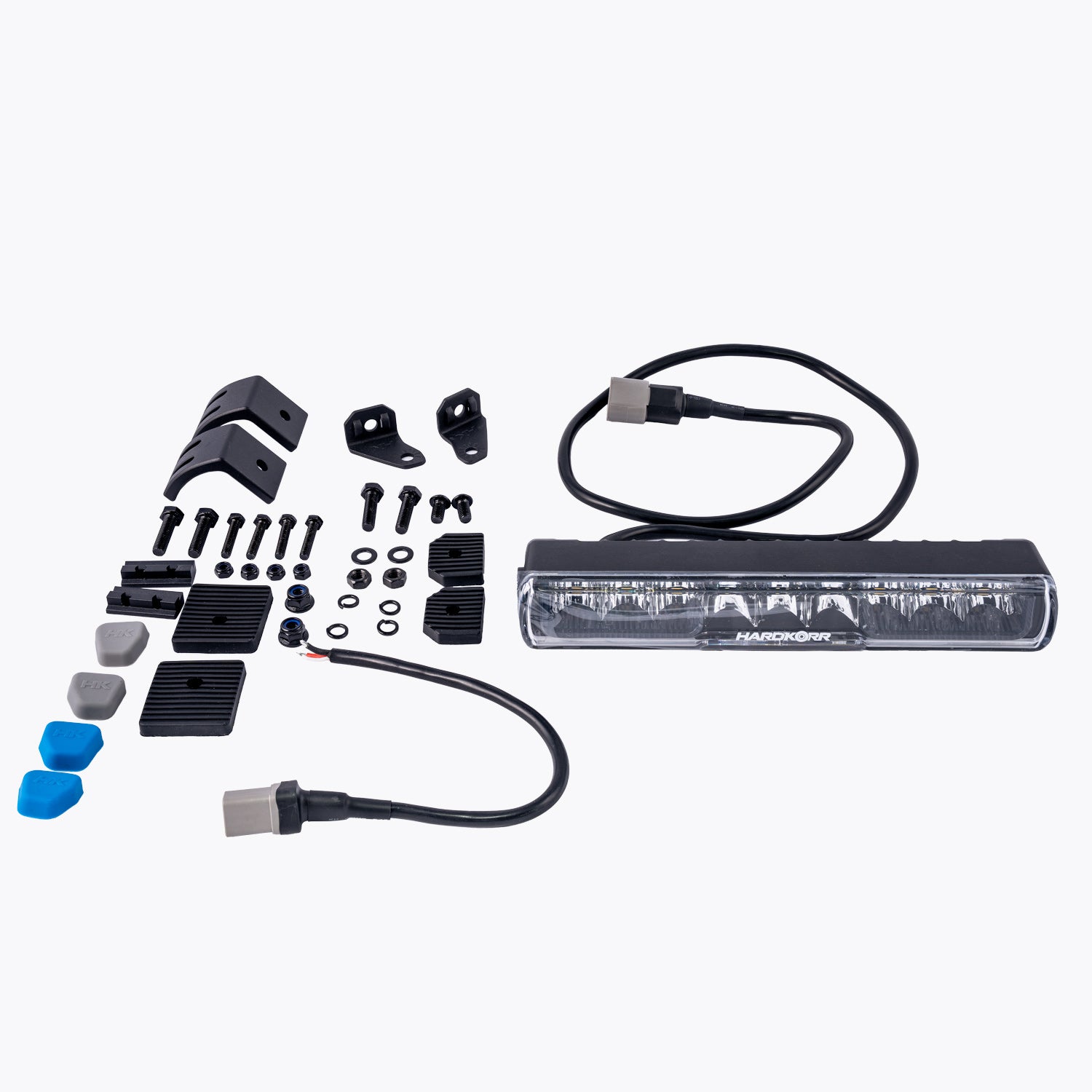

| 1x | XD Series 10" Light Bar |
| 1x | 4-pin harness wiring tail |

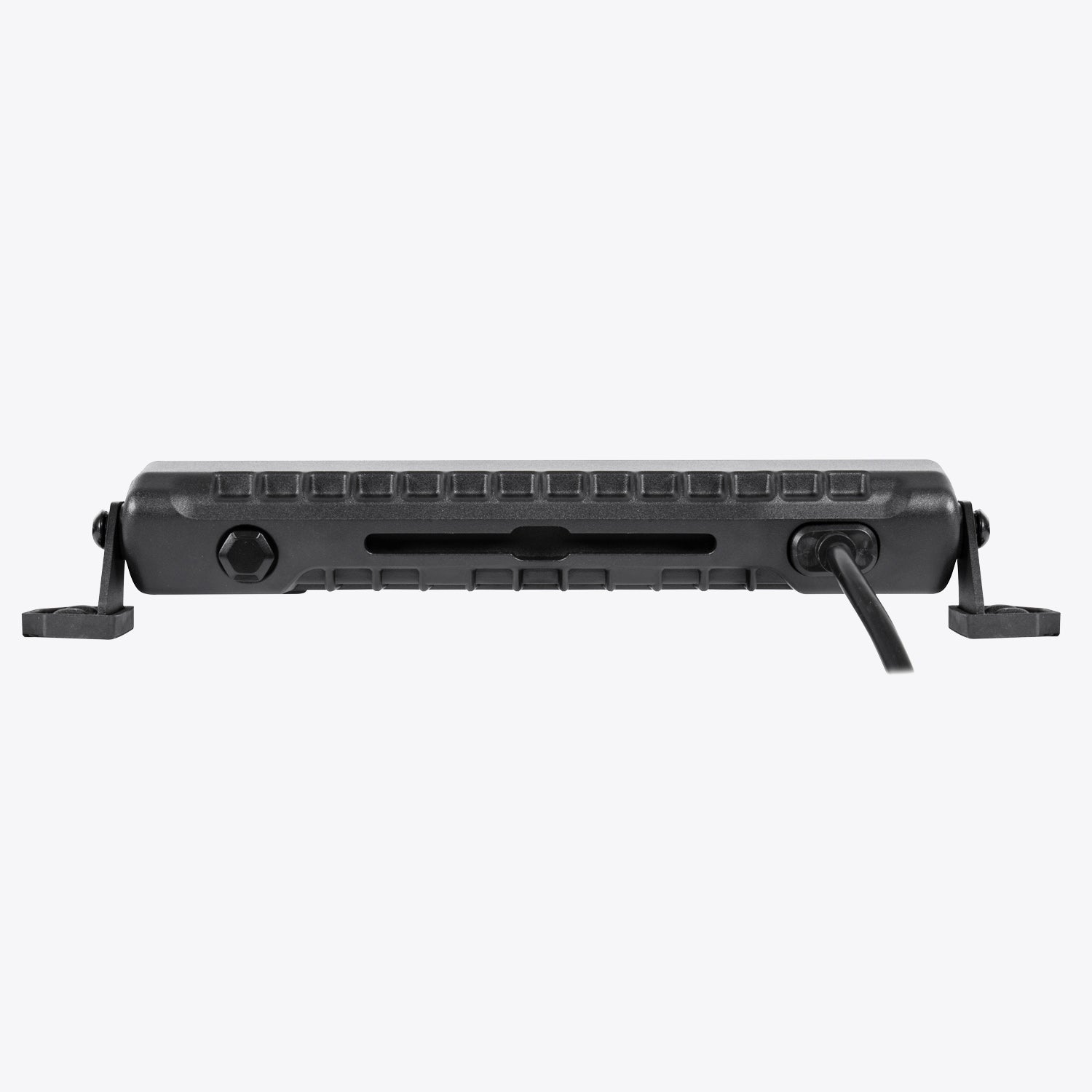

| 1x Pair | Side legs and hardware |

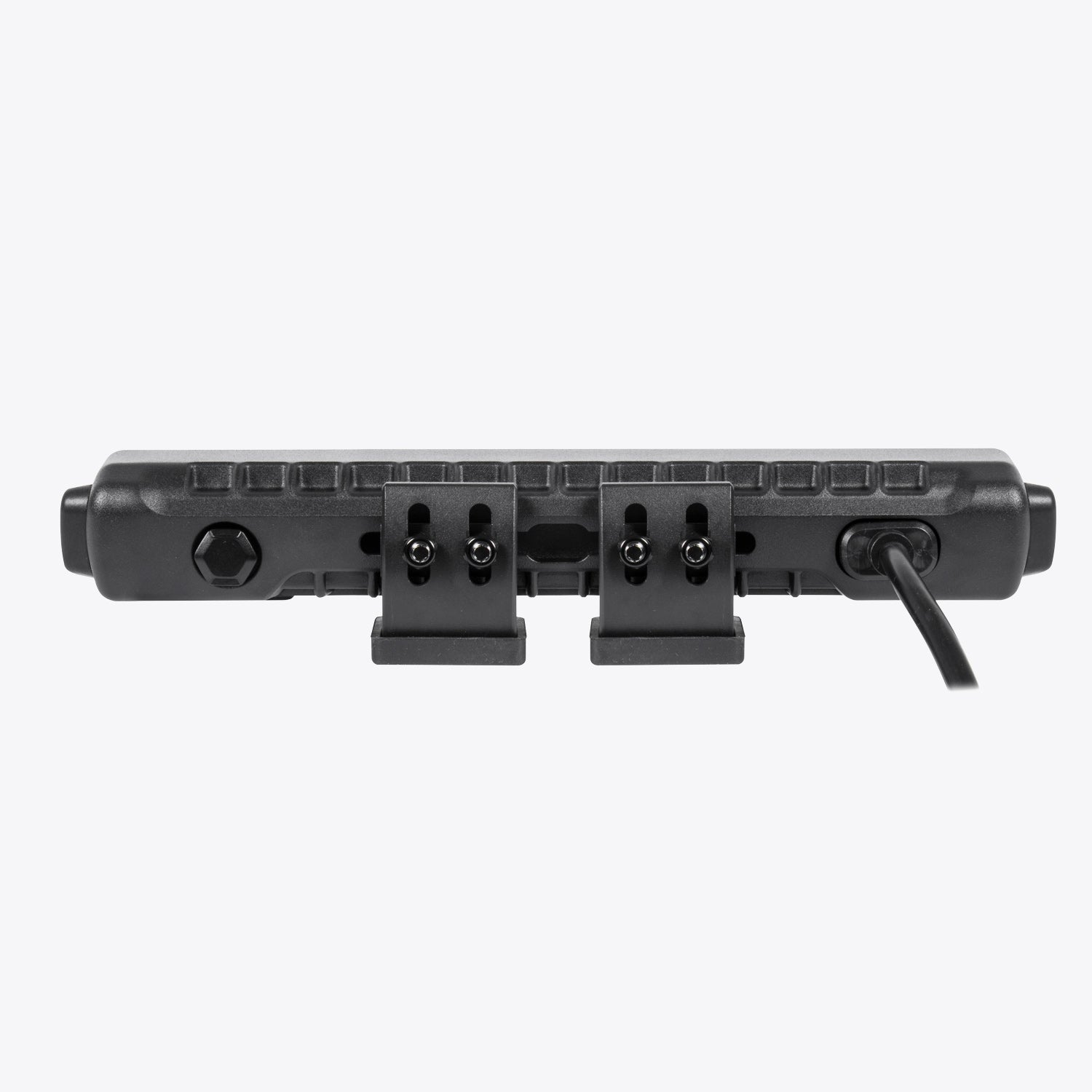

| 1x Pair | Rear legs and hardware |

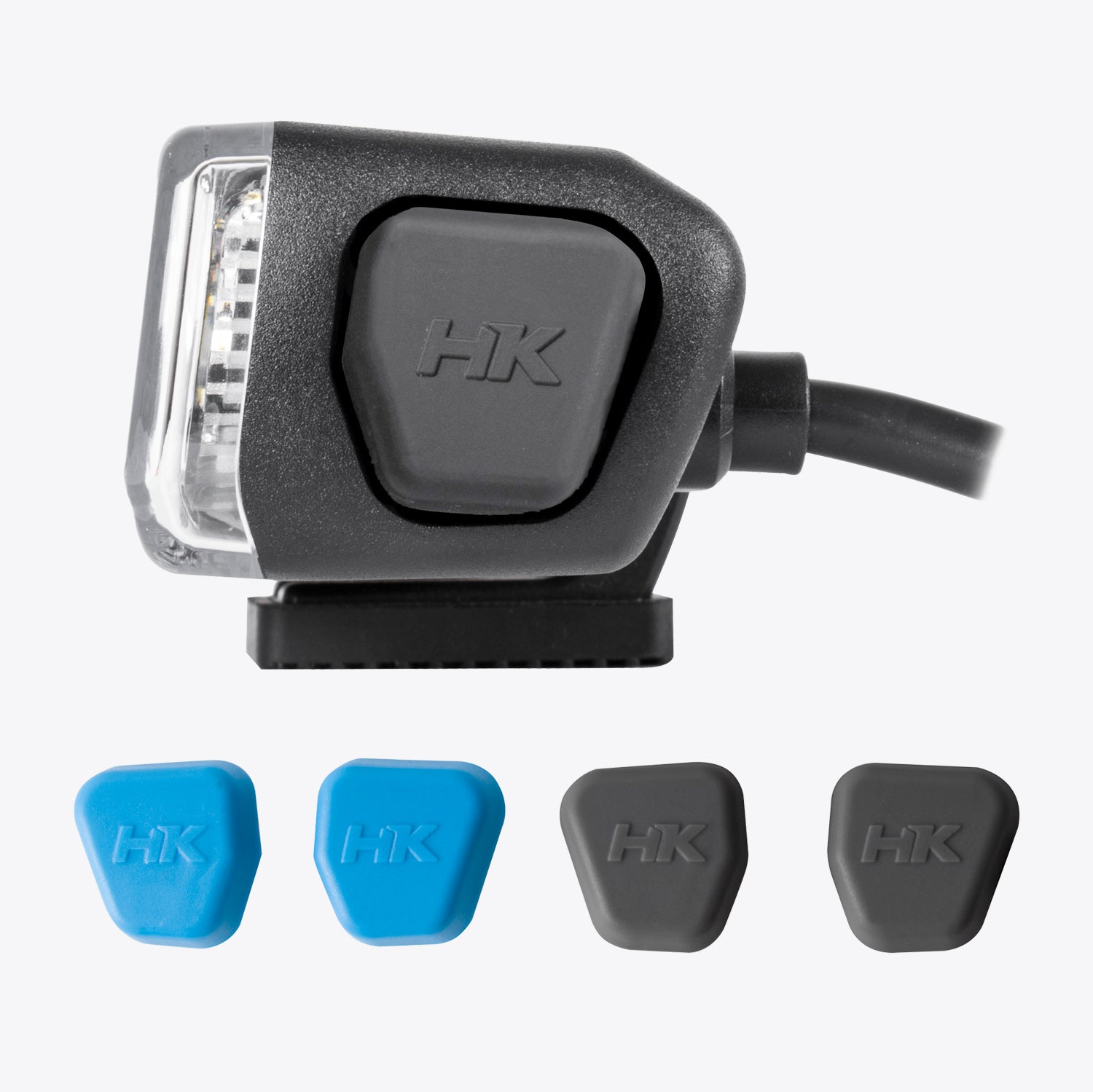

| 2x | Blue end-caps |
| 2x | Grey end-caps |
This product has a 2 year replacement warranty. This means that if the product is found to be faulty, we will replace the whole product. See our warranty page for details.
