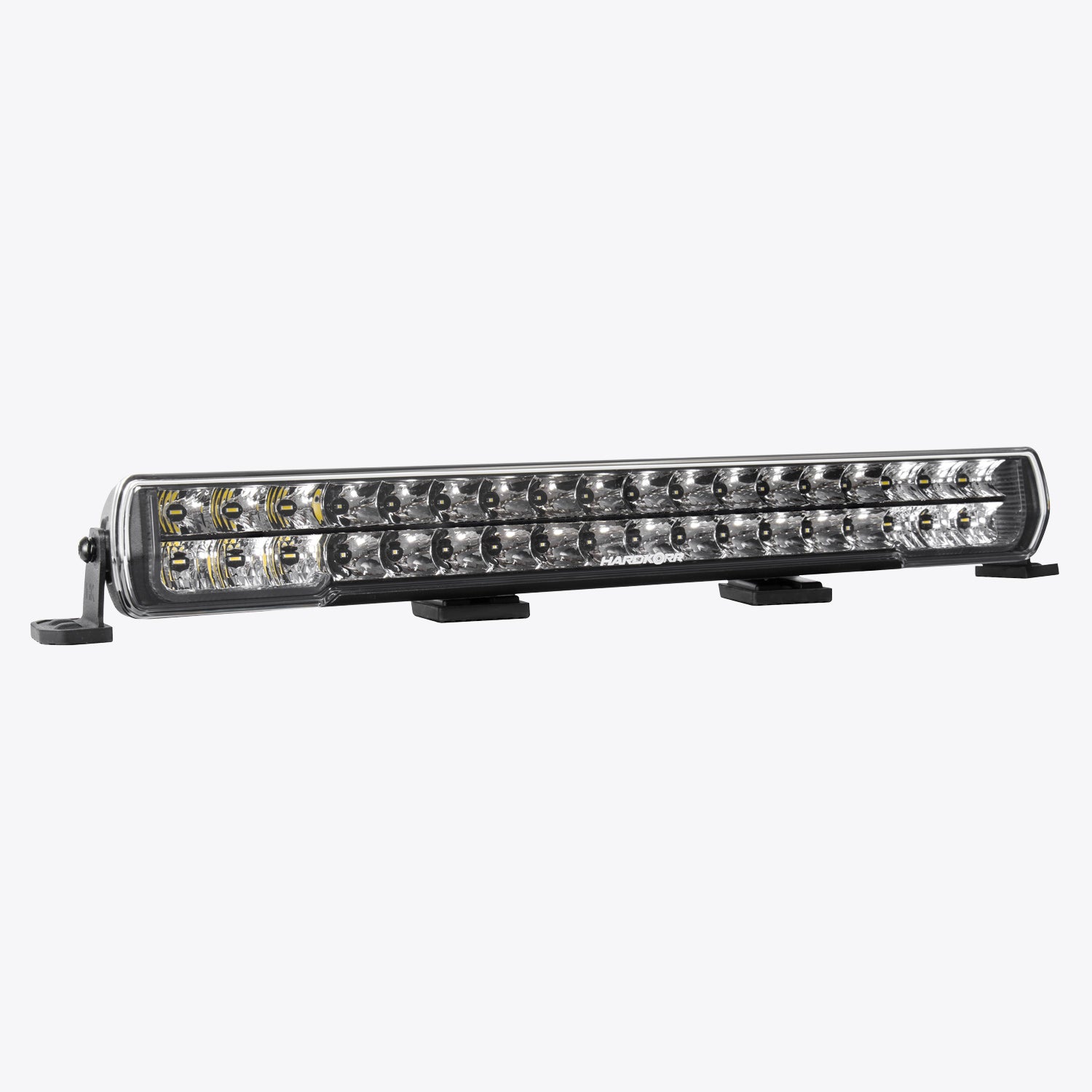

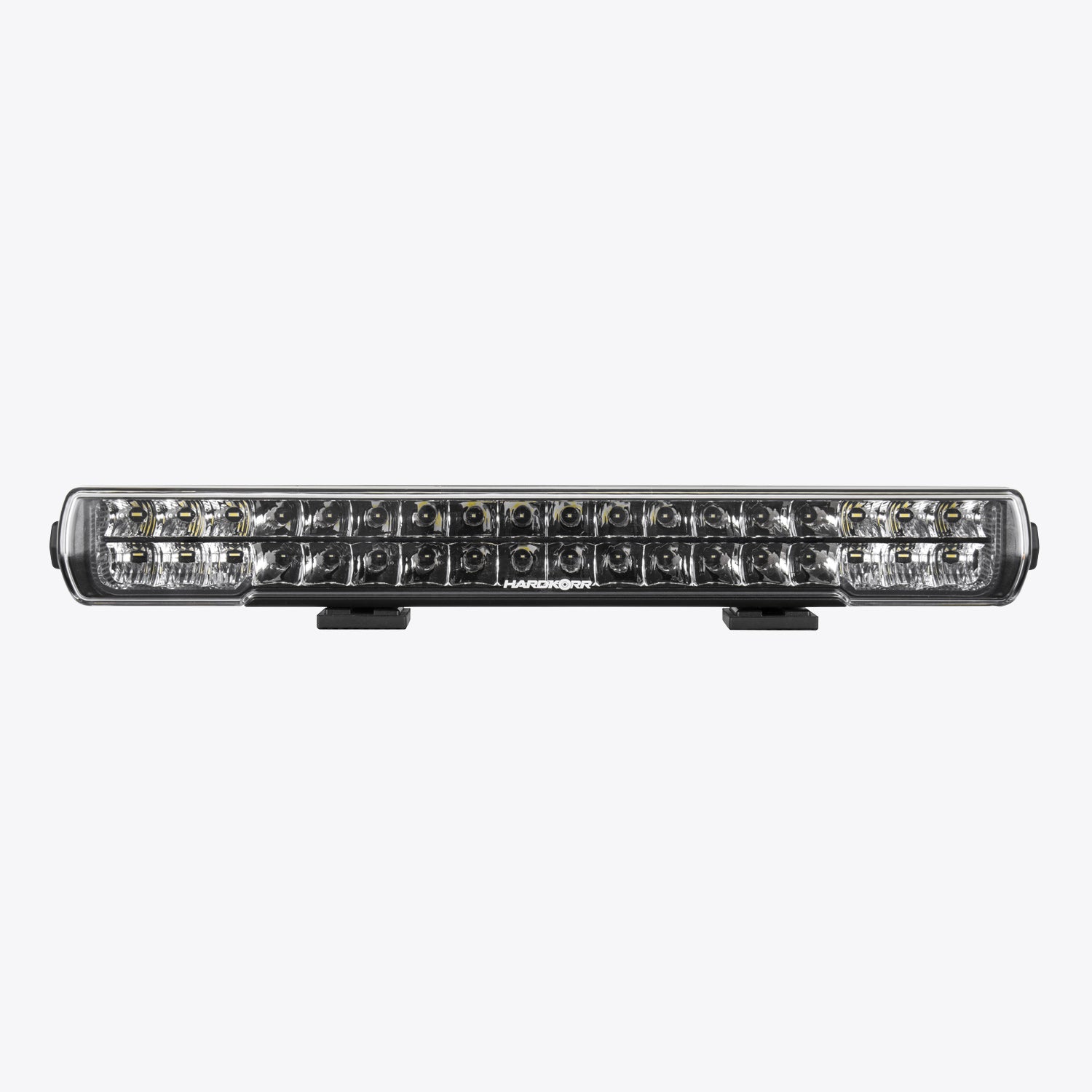

XD Series 20"
Double Row LED Light Bar
The XD Series Lightbars deliver strong performance and solid build quality without the inflated price tag. Designed for real-world driving, they focus on putting usable light exactly where it matters most, helping you spot hazards earlier and drive with confidence after dark.
With a 1 lux beam reaching out to 672 metres, distance is never in question. Whether you’re covering long stretches of unlit highway or pushing deeper into remote tracks, the XD Series provides clear forward visibility without sacrificing control.

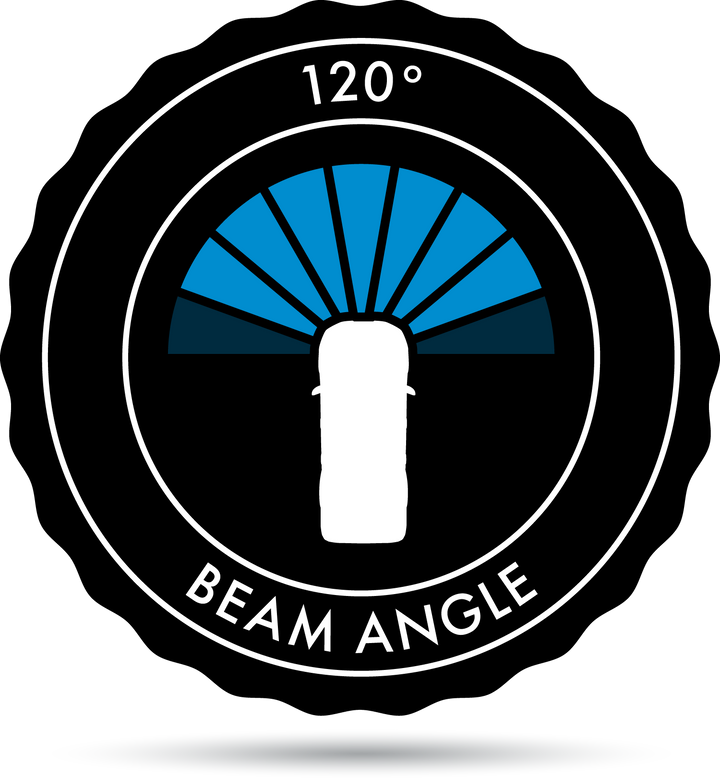

A wide 120° beam angle ensures the light spreads comfortably across the full width of the road and beyond the shoulders, improving peripheral vision and reducing the risk of unexpected obstacles, wildlife, or terrain changes catching you off guard.
Operating at a balanced 5500K colour temperature, the light output is clean and natural, offering excellent contrast without harsh glare. This reduces eye strain on long night drives while maintaining clarity in dusty, wet, or variable conditions.

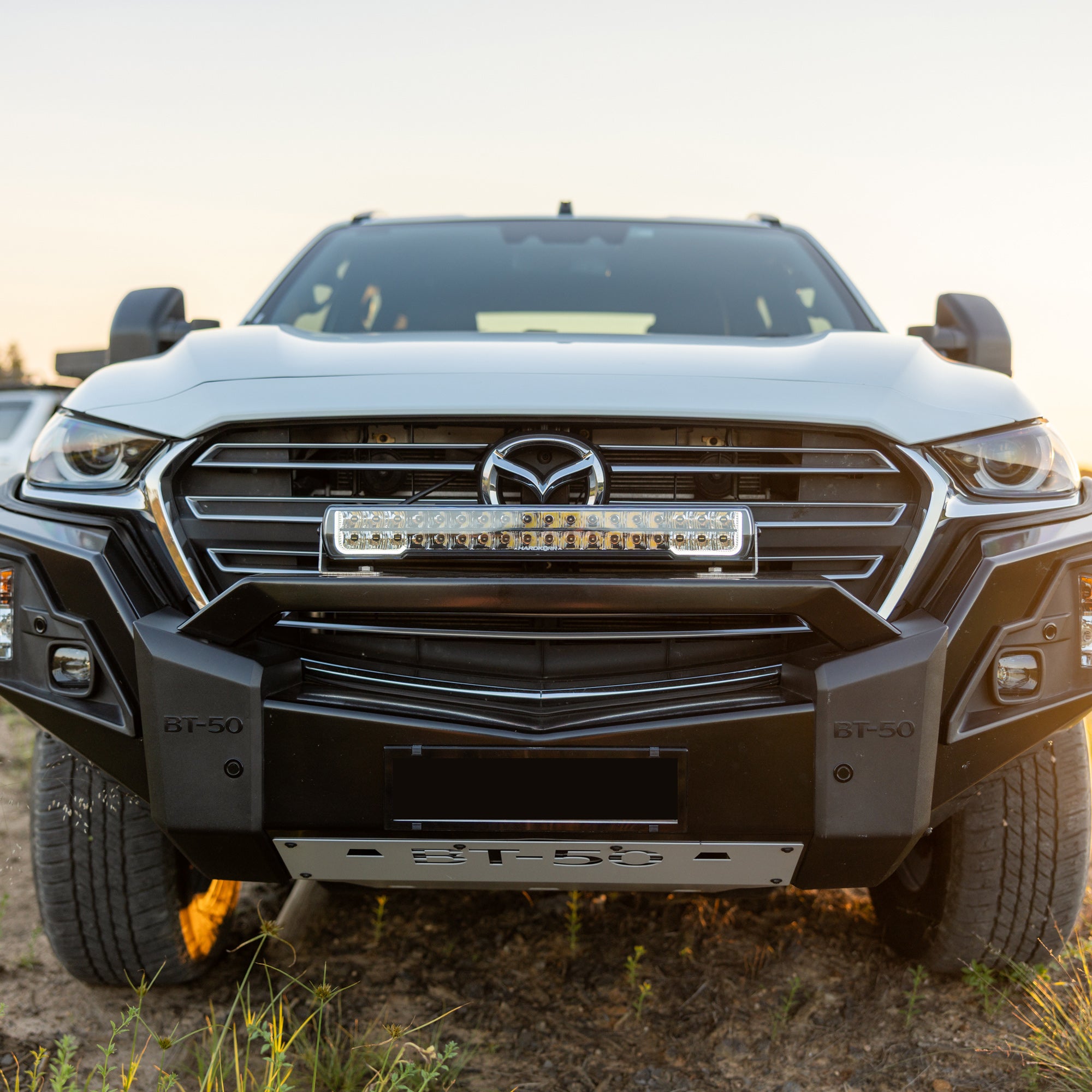

Built to handle Australian terrain, the XD Series Lightbars are engineered for durability, with high vibration and shock resistance to withstand corrugations, impacts, and continuous off-road punishment. From touring rigs to work vehicles, these lightbars are made to perform when conditions are far from ideal.
Performance. Coverage. Reliability.
There’s really only one question left.
Where to next?
* All images shown are from pre-production models; there may be minor differences between them and the final production models.| Housing material | Powder-coated die-cast aluminium |
| Bracket material | Powder-coated die-cast aluminium |
| Lens material | UV-coated polycarbonate |
| Size | 560 (L) x 71 (H) x 63 (D) mm |
| Weight | 2.0kg |
| Raw lumens | 27,600lm |
| Effective lumens | 12,595lm |
| 1-lux rating | 672m |
| Beam angle | 118° |
| Peak intensity (candela) | 410,000cd |
| Colour temperature | 5,500K |
| LED chips | 24x 2016 + 12x 1860 |
| Operating voltage | 10–30V DC |
| Current draw | 15.82A @ 12V / 7.74A @ 24V |

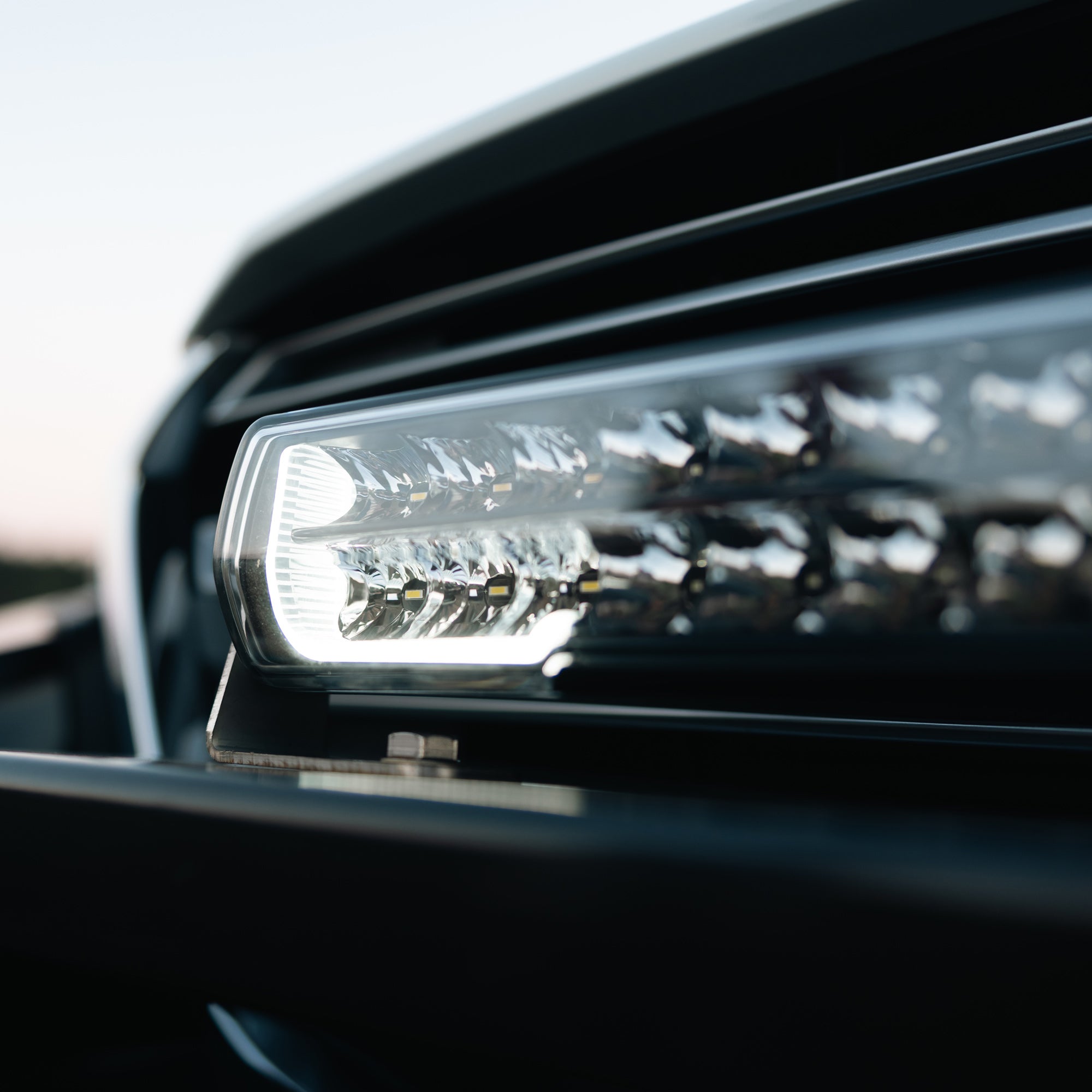

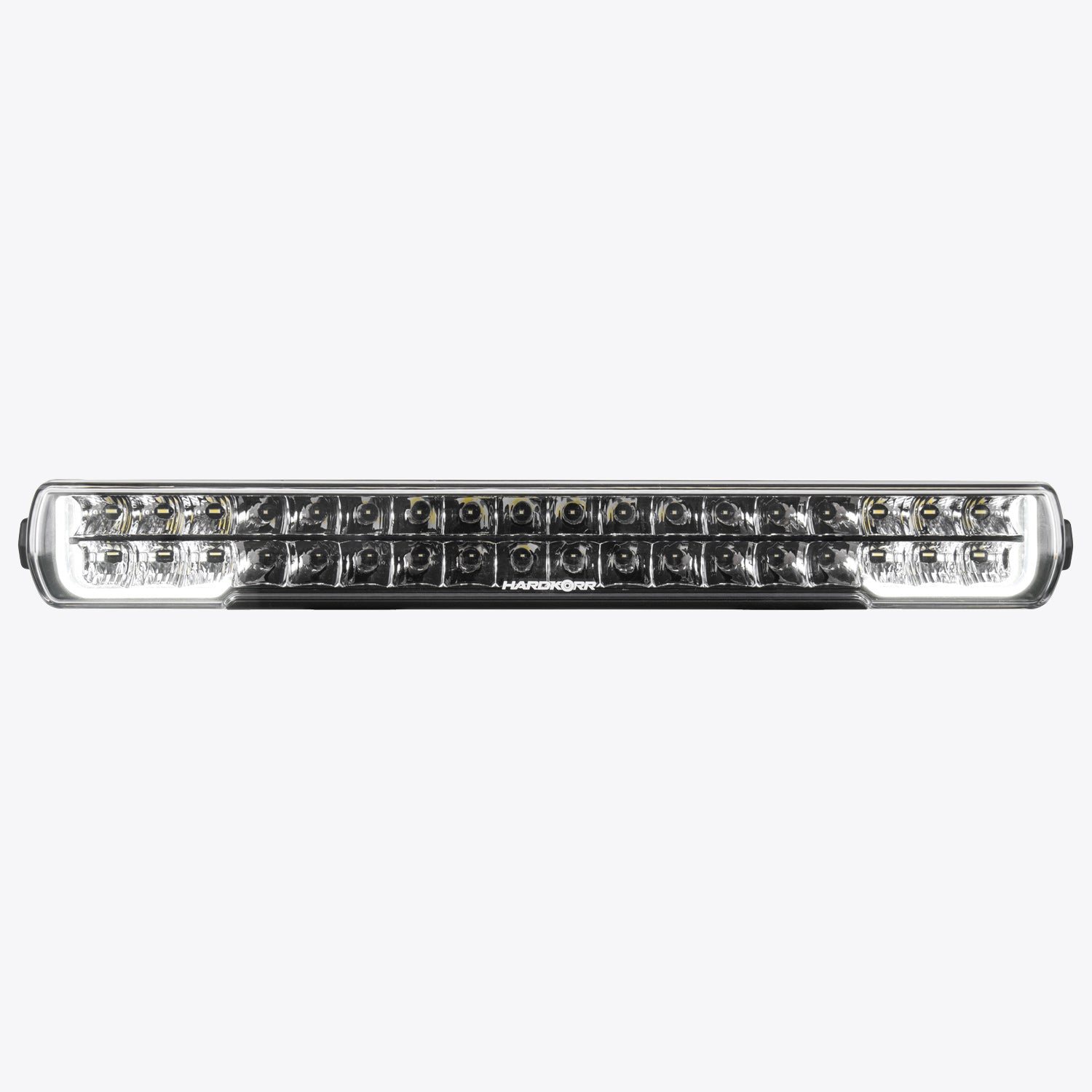

| DRL draw | 0.48A @ 12V / 0.27A @ 24V |
| Operating temperature | -30°C – 65°C |
| Ingress protection | IP68 / 9K |

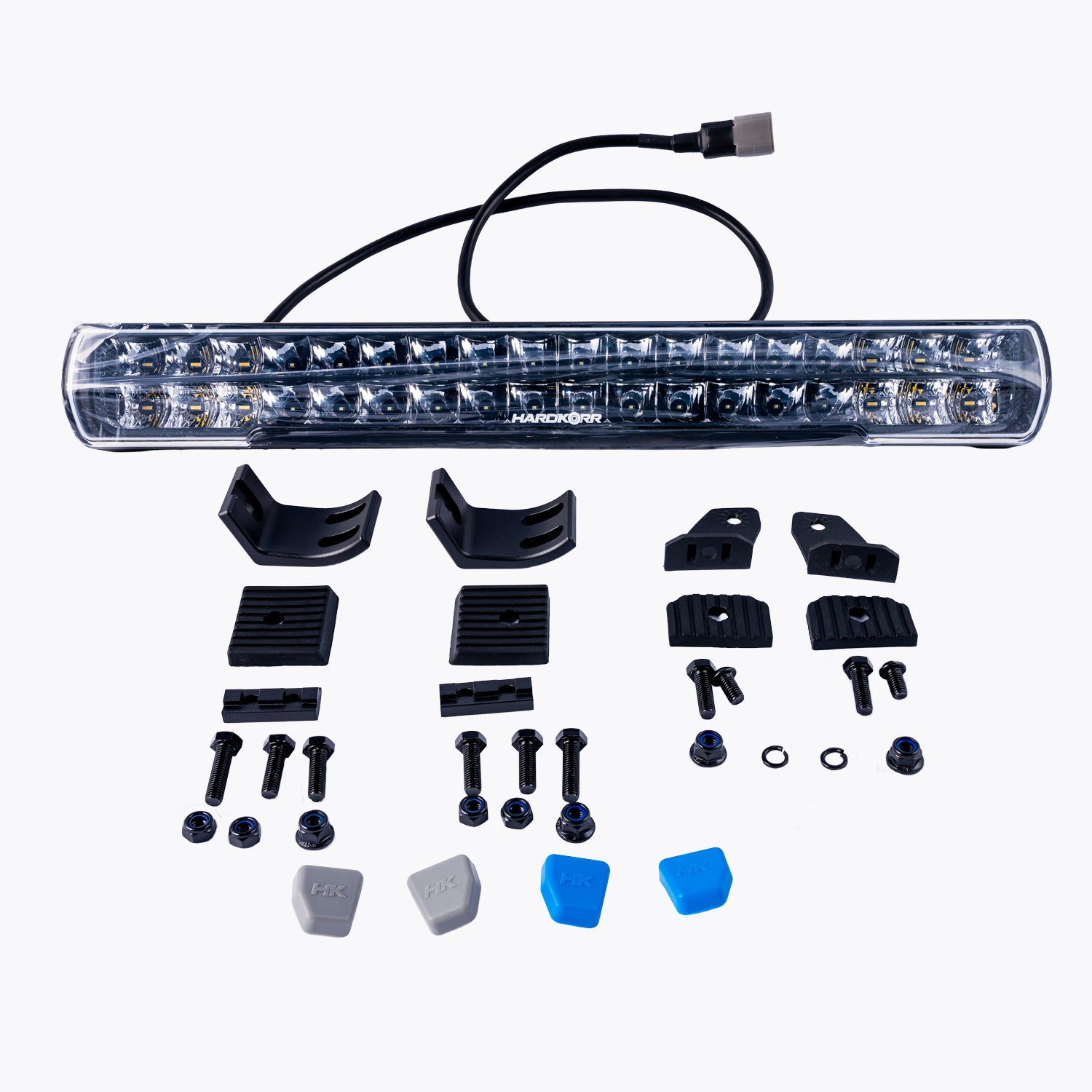

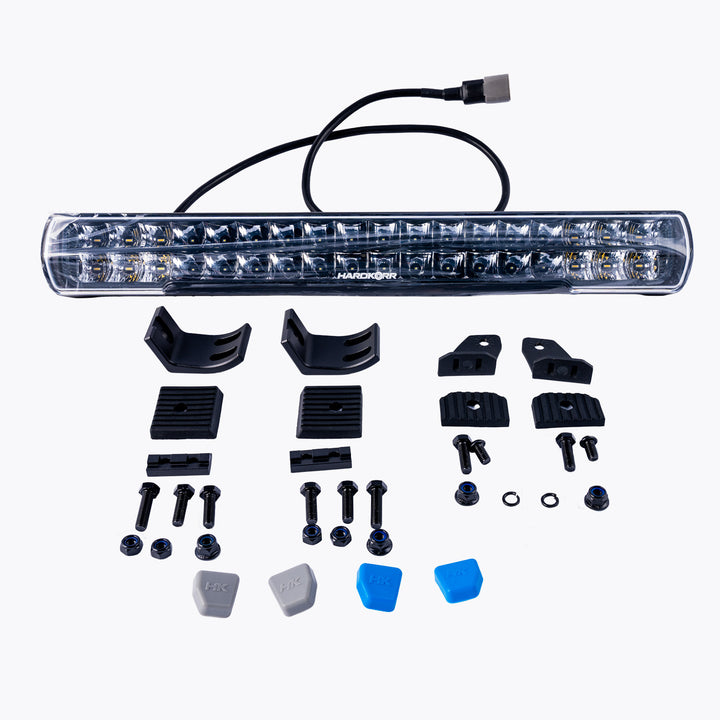

| 1x | XD Series 20” Lightbar |
| 1x | Side/rear legs + hardware |
| 1x | Rear legs + hardware |
| 1x | 4-pin harness wiring tail |

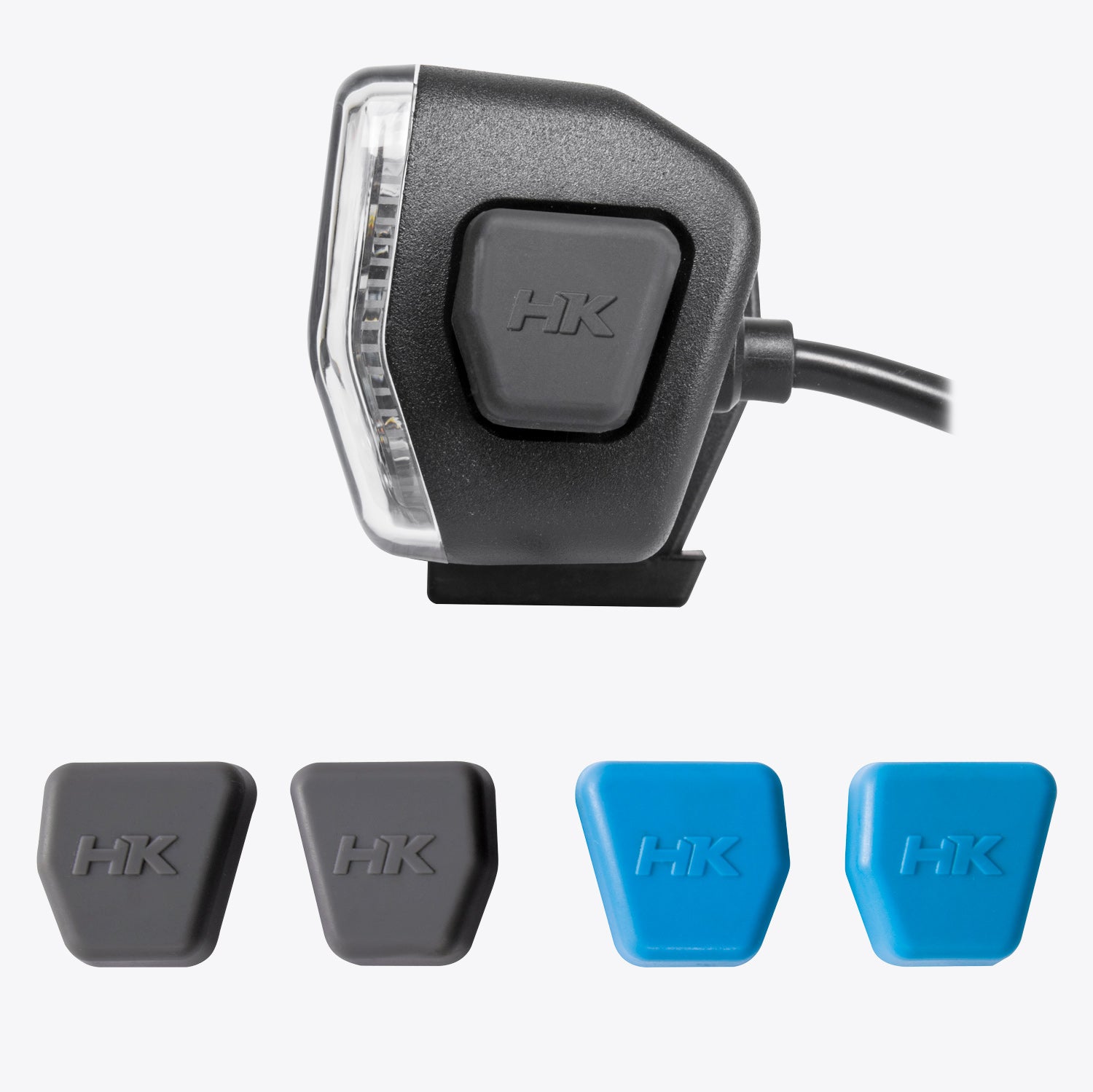

| 1x | Blue/grey end-caps (pair) |
This product has a 2 year replacement warranty. This means that if the product is found to be faulty, we will replace the whole product. See our warranty page for details.
