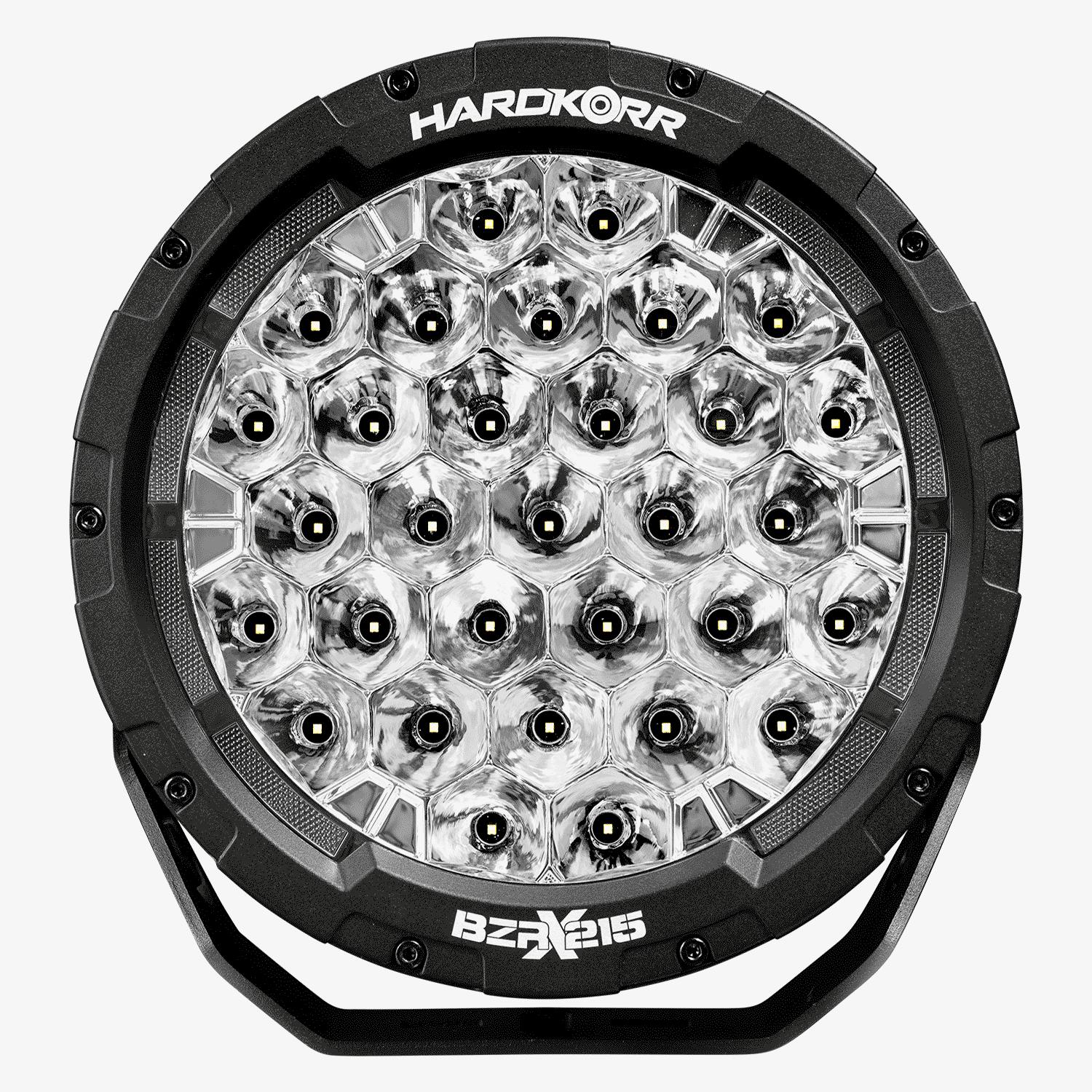

BZR-X Series 9"
LED Driving Light (Single)

Hardkorr’s flagship BZR-X Series 9″ LED driving lights produce a wide, even combination beam with a market-leading 1 lux @ 1,460m forward distance. Their ultra-slim design means they are particularly suited to vehicles with narrow mounting surfaces such as modern factory bullbars.

*This product is designed to hook into an existing set of BZR-X lights. This light does not come with a wiring harness but will connect up to a pre-installed pair with the included 2-into-1 splitter cable.

BZR-X 9 inch LED driving lights
BZR-X Series 9" LED Driving Light (Single)
BZR-X Series 9" LED Driving Light (Single)
BZR-X Series 9" LED Driving Light (Single)
BZR-X Series 9" LED Driving Light (Single)

BZR-X Series 9" LED Driving Light (Single)

HKBZRX215-S

Regular price$209.00
/
Tax included. Shipping calculated at checkout.
NO SHIPPING AVAILABLE OUTSIDE AUSTRALIA AT THE MOMENT

STYLE & FUNCTION

Signature style DRL Lights

Now when you turn your vehicle’s engine on, your daytime running lights will illuminate progressively rather than all coming on at once.

Whilst it (obviously) doesn’t enhance the performance of your lights at all, we thought it would be a bit of fun to create and produce a nice effect on the front of your rig!

TOUGHER THAN CHUCK NORIS

Built to last for many years in even the toughest conditions

We’ve engineered these lights to be incredibly durable and reliable and extensively tested them to ensure they will still perform even under extreme duress in real-world Australian conditions.

MARKET-LEADING

Distance and spread

With our exclusively crafted lens reflectors, you can enjoy an impeccable spread and reach that guarantee a clear and uninterrupted field of view devoid of any dark spots.

Our bestselling lights, now available in singles.

As a result of customer feedback, we now offer our bestselling BZR-X Series LED Driving Lights in singles as well as pairs. Primarily this allows customers to run three-light setups on their bull bars, which is an increasingly popular choice among the 4wding community.

The Hardkorr BZR-X Series driving lights are hands down the best driving lights we’ve ever created. In fact, we think they’re the best driving light anyone has ever created. Big call? Maybe, but we don’t think it’s a wrong one!

We’ve started with the best LED chips currently available on the market, from Lumileds. Forget the old argument between OSRAM and CREE, Lumileds LEDs are starting to appear in more and more high-end driving lights, and for good reason. They are incredibly bright, much more than anything else we’ve ever come across, and very efficient as well.

Why does this matter? Good question. Using LED chips with such high brightness means that our reflector engineers have been able to achieve the “holy grail” of driving lights: a true combination beam, as good as you’ll find in a light bar, without sacrificing forward distance.

They’re also CISPR15 compliant, meaning they have been independently tested to ensure they do not interfere with radio frequencies.

Combined with a tough, understated look, integrated daytime running lights (DRL) and strong 4mm 316 stainless steel brackets, they are the ultimate driving lights for keen adventurers, professional drivers and those who spend a lot of time on country roads.

Tested and Certified

We've engineered these lights to be incredibly durable and reliable, and extensively tested them to ensure they will still perform even under extreme duress in real-world Australian conditions. They are certified as compliant with the following standards:

  • IK08: Can survive up to a 5 joule impact from any direction without failing
  • IEC 60068-2-6 and ISO16750-1: Can survive constant exposure to 15G (R.M.S.) of vibration in the 24-2000Hz range
  • IP68: Completely resistant to dust ingress, can handle submersion in 3m of water for 30 minutes
  • CISPR15 Class 3: Will not unduly interfere with radio signals

In addition, our manufacturing facility has been certified in accordance with the following international standards:

  • ISO 9001: Ensures quality management systems have been implemented
  • ISO 14001: Ensures environmental management systems have been implemented

Adaptor cable included.

We introduced the single BZR-X lights primarily to allow people to run three driving lights on the front of their rig. To help make the job of wiring all the lights as easy as possible, we include a 2-into-1 adaptor cable with all single lights. This means you can use the same wiring harness that comes with the pair, and simply connect the adaptor cable to one of the Deutsch plugs on the end of the harness to make all three lights work together.

Genuine parts, precision optics.

Hardkorr’s BZR-X series driving lights are made using genuine top-grade Lumileds® LED chips sourced from authorised agents, to ensure even light throw, correct colour rendering and long service life. These chips are matched with custom engineered reflectors that are manufactured to nanometre precision, and secured within high-quality aluminium housing which is designed to effectively dissipate heat and protect the sensitive components within.

This attention to detail ensures that every unit we manufacture gives consistent performance, and helps us fulfil our ambition to be the world’s most trusted manufacturer of LED lighting.

Materials ADC12 aluminium housing with AkzoNobel® powder coating 4mm 316 s/steel bracket with AkzoNobel® powder coating UV-coated Lexan® polycarbonate lens
Dimensions 215mm (w) x 235mm (h) x 75mm (d) incl. bracket
LED Manufacturer Genuine Lumileds®
LED Number (each) 31 x 5w
Lux (pair) 1 lux @ 1,460m
Output (pair) 34,196 effective lumens
Beam Combination
Ingress Protection IP68
EMC rating CISPR 15 Class 3
Impact rating IK08 (5J)
Vibration rating IEC 60068-2-6 & ISO16750-1 (15G R.M.S. @ 24-2000Hz)
Weight (each) 2.7kg
Operating Voltage 10 - 30v DC
Current (each) 10.6A @ 12V / 5.3A @ 24V
Colour Temp 6000K
LED Lifespan 50,000+ hours
Certifications CE, RoHS, RCM
1x 155w LED driving light
1x 316 stainless steel mounting bracket
1x set security bolts & anti-vibration rubber base
1x 2-into-1 Deutsch adaptor cable
The Hardkorr HKBZRX215 driving lights measure 215mm wide by 235mm high by 75mm deep

All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 3-year Australian warranty and a 30-day money back guarantee.
